Motion Control Solutions
Complete industrial automation solutions for
manufacturers and users of machine tools and
production machines
Mobile :: Subhead

Gudel Modules & Components


Güdel is a world leader in the supply of Modules & Components for industrial automation

Including:
  • FP 3-Axis Cartesian Gantries including the new FP-5-HP
  • ZP 2-Axis Cartesian Gantries
  • TrackMotion Floor & TrackMotion Overhead
  • Components – Gearboxes, Guideways, Racks & Pinions
Today Güdel products can be found in industries such as: automotive, rail, logistics & warehousing, wood, aerospace, automotive & pharmaceuticals.

CNC Design can work with customers to provide components & modules as discrete products or modules as complete turnkey systems in conjunction with Siemens industrial automation products such as SINUMERIK CNC’s & SIMATIC PLC’s: 5 axis machining, product handling, 3D printing & additive manufacturing.

FP-5-HP 3-Axis Gantry
High-performance 3-axis gantry with increased work area & high dynamics

With the new FP-5-HP a maximum stroke of 14m for the Y Axis is now possible. The high dynamic design helps to improve overall cycle time for demanding applications. The FP-5-HP area gantry is especially suited to applications where large work areas must be covered with the highest possible dynamics. Payloads of up to 1,100kg can be mounted on the Y Carriage, while in case of a gantry with Z Axis an effective high dynamic payload of up to 500kg is achievable.


FP 3-Axis Gantry
Scalable 3-axis gantry for large work areas

The FP is a scalable gantry and is used to cover large work areas where a high degree of precision is also required. It is well suited for handling heavy payloads, up to 3,000kg. Typical industry applications can include logistics and machine tools for warehousing, additive manufacturing, aerospace and automotive. It is also well suited for process-oriented applications such as handling, packaging, palletising, assembly, and testing.

TrackMotion Floor TMF
Floor mounted linear tracks for robots

The TrackMotion Floor (TMF) is scalable floor mounted linear track that can manage static payloads up to 20,000kg and articulated/robot payloads up to 14,000kg. All major robot manufacturers are supported including Carriage plate mounting and gearbox motor interface. A wide variety of configuration options allows the TMF to be customised to any application. The TMF will bring precision and efficiency to a wide variety of production process.

TrackMotion Overhead TMO
Overhead linear tracks for robots

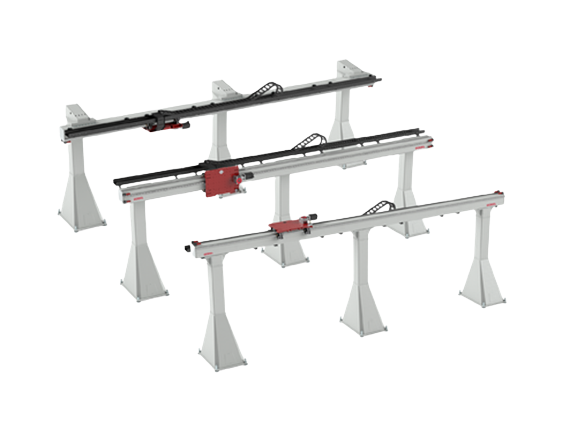

The TrackMotion Overhead (TMO) is scalable above floor mounted linear track that can manage static payloads up to 5,000kg and articulated/robot payloads up to 2,400kg. All major robot manufacturers are supported including Carriage plate mounting and gearbox motor interface. Variations for elevated mounting (E), ceiling mounted (C) and wall mounting (W) are available as standard. A wide variety of configuration options allows the TMO to be customised to any application. The TMO will bring precision and efficiency to a wide variety of production process.

ZP 2-Axis Gantry
Scalable 2-axis gantry

The ZP is a scalable gantry and is used to cover large work areas where a high degree of precision is also required. It is well suited for handling heavy payloads, up to 3,000kg. It is well suited for process-oriented applications such as parts loading & unloading, handling, assembly, and testing.
